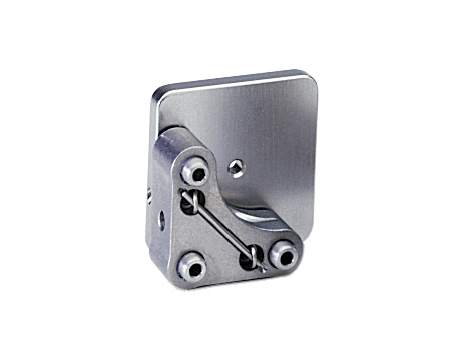

Blank Plate Mount, Tiny, 3 Allen-Key Adjustment, M2 Thd.

Hex-Driven Miniature Platform Mirror Mounts

The 9873-M-K Tiny Blank Plate Mount is our most compact platform mount for applications where space is truly tight. Designed with the same mechanical principles as our larger classic mounts, it offers over 2 mm of pure translation, ±4° of tilt, and an M2 threaded hole for platform mounted optics. It has 6-80 adjustment screws and #2 (M2) clearance holes for mounting. All our Tiny mounts come standard without knobs. If you need knobs to adjust these mounts in your experiment, you can order our Model 9365 Tiny knobs.

Specifications

Technical Specs

Mechanism
Kinematic
Platform Size
23.1 x 23.1 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
14.3 arc sec

Angular Range
±4°
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Platform Thread
M2 THD
Mounting Holes
2-56 (M2) CLR

Mechanism
Kinematic
Platform Size
23.1 x 23.1 mm
Number of Actuators
3
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
14.3 arc sec

Angular Range
±4°
Material
Stainless Steel
Drive Type
Allen-Key, non-locking
Platform Thread
M2 THD
Mounting Holes
2-56 (M2) CLR

Resources & Downloads

2D Product Drawings

9873f-Drawing(95.9 kB, PDF)
