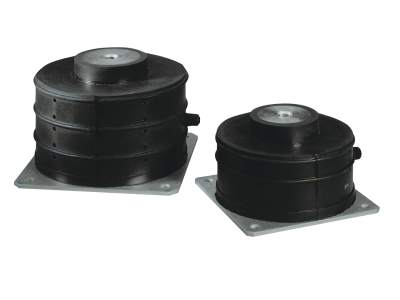

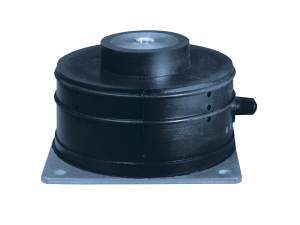

Compact Air Isolation Mount without Self Leveling

SLM series compact air isolator mounts are ideal for applications requiring higher deflection isolators. The SLM’s mechanical bond design incorporates a positive locking system to ensure performance and safe operation. It's robust mechanical design and reliable performance makes it the ideal choice for applications such as Industrial equipment, tools and machinery.

Low profile, high capacity pneumatic elastomeric mount
Rigid side wall design for better isolation than air bladders
No leveling valves, gauges, filters or regulators required
Continued support and isolation even with no air pressure

See All Features

Description	Compatibility	Load Capacity per Isolator	Minimum Isolator Load	Maximum Air Pressure	Avail.	Price

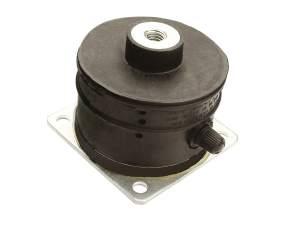

SLM-1ACompact Air Mount, 100 lb. Max. Load, 60 psi Max. Air Pressure	UNIVERSAL	100 lb	25 lb	60 psi	In Stock	$237

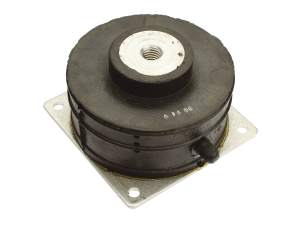

SLM-3ACompact Air Mount, 300 lb. Max. Load, 60 psi Max. Air Pressure	UNIVERSAL	300 lb	75 lb	60 psi	In Stock	$281
SLM-6ACompact Air Mount, 600 lb. Max. Load, 80 psi Max. Air Pressure	UNIVERSAL	600 lb	150 lb	80 psi	Contact Us	$326
SLM-12ACompact Air Mount, 1200 lb. Max. Load, 80 psi Max. Air Pressure	UNIVERSAL	1200 lb	300 lb	80 psi	In Stock	$468
SLM-24ACompact Air Mount, 2400 lb. Max. Load, 80 psi Max. Air Pressure	UNIVERSAL	2400 lb	600 lb	80 psi	In Stock	$602

Specifications

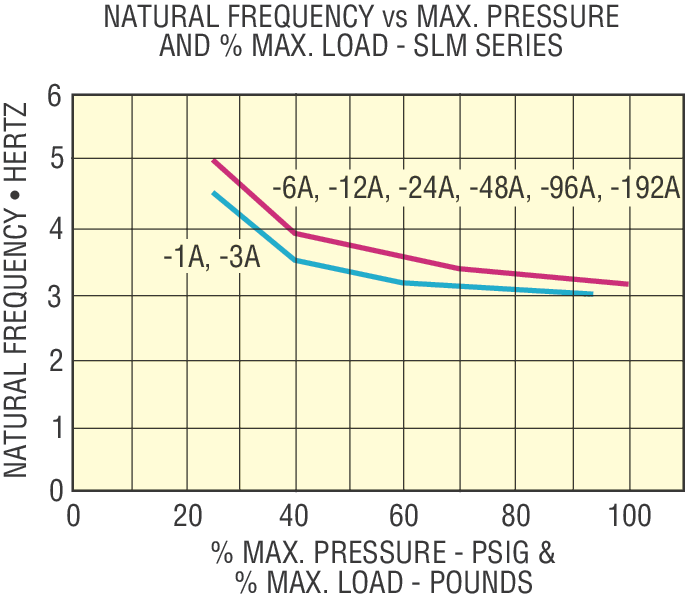

Natural Frequency (Nominal), Max.
5 Hz

Natural Frequency (Nominal), Min.
3 Hz

Features

Pneumatic Isolation Solution at an Affordable Price

These isolators use an air spring elastomeric isolator with integral heavy wall construction. The rigid wall design of the air mount provides better isolation than traditional air bladder design, delivering 96% vertical isolation and 98% horizontal isolation at 10 Hz. Once filled with air they are virtually maintenance free.

Air Spring and Elastomeric Neoprene Material Provides Superior Isolation

SLM mounts also offer excellent protection against high static deflection, drift and permanent set, thanks to the combination of resiliency of the material and air spring. Neoprene elastomer has an operating temperature range of -20°F to +180°F (-30 °C to +82 °C) and is resistant to oils, most solvents and ozone. The isolator itself will have natural frequency in 3-5 Hz when inflated, however, even if there is no air pressure the isolator still has natural frequency as low as 10 Hz. SLM isolator mount is your ideal solution for machinery and equipment isolation.
