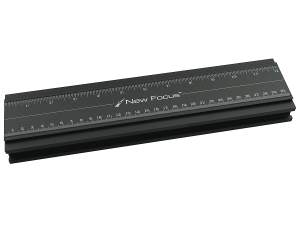

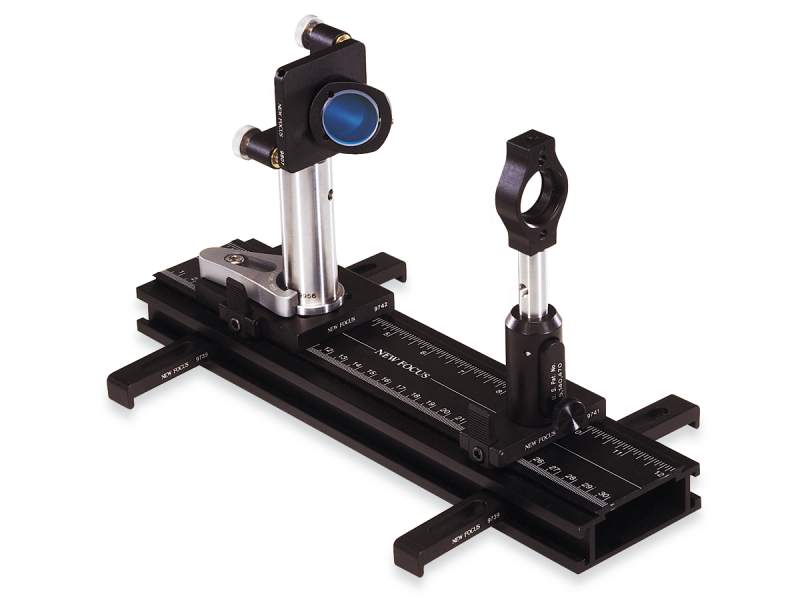

76 mm Quick-Release Optical Rail System

The 76 mm Quick Release Optical Rails System by New Focus are the most convenient and user friendly of the optical rail systems featuring quick-release carriers and a box-beam cross-sectioned rail to reduce weight without sacrificing stiffness.

3.0 in. wide, single-rail system with a box beam cross-section for stiffness
Single-handed fast lock and release mechanism for optical carriers
Large, readable metric and English scales
Mounts to surfaces with clamps to allow any rail orientation

See All Features

Show Filters:

Showing 9 of 9 total products

Compatibility:

Description	Compatibility	Type	Rail Length	Thread Type	Height	Length	Avail.	Price

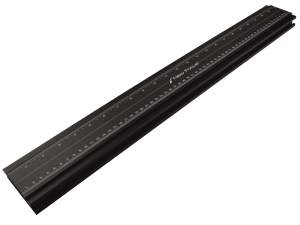

9731Optical Rail, 3.0 in. Width, 12 in. Length	UNIVERSAL	Optical Rail	304.8 mm		26.92 mm	304.8 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$104
9732Optical Rail, 3.0 in. Width, 24 in. Length	UNIVERSAL	Optical Rail	609.6 mm		26.92 mm	610 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$163

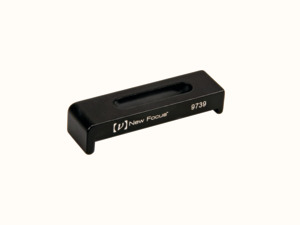

9739Table Clamp, For 9731/9732 Quick Release Optical Rail	UNIVERSAL	Rail Table Clamp			12.7 mm	16 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$21

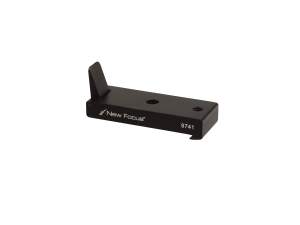

9741Optical Rail Carrier, 1 in., 9731/9732 Optical Rails, 1/4-20 C-Bore	IMPERIAL	Rail Carrier		1/4-20	28.7 mm	25.4 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$117
9741-MOptical Rail Carrier, 25.4 mm, for 9731/9732 Optical Rails, M6 C-Bore	METRIC	Rail Carrier		M6	28.7 mm	25.4 mm	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$117
9743Optical Rail Carrier, 1 in., 9731/9732 Optical Rails, 8-32	IMPERIAL	Rail Carrier		8-32	28.7 mm	25.4 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$95
9743-MOptical Rail Carrier, 25.4 mm, 9731/9732 Optical Rails, M4	METRIC	Rail Carrier		M4	28.7 mm	25.4 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$95

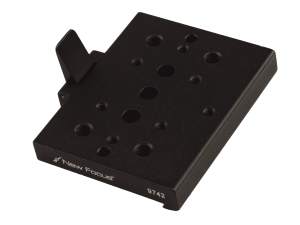

9742Optical Rail Carrier, 3 in., 9731/9732 Optical Rails, 8-32 & 1/4-20	IMPERIAL	Rail Carrier		8-32, 1/4-20	28.7 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$148
9742-MOptical Rail Carrier, 76.2 mm, for 9731/9732 Optical Rails, M4 & M6	METRIC	Rail Carrier		M4, M6	28.7 mm	76.2 mm	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$148

Features

76 mm, Single-rail System with Stiff Box Beam Cross-section Construction

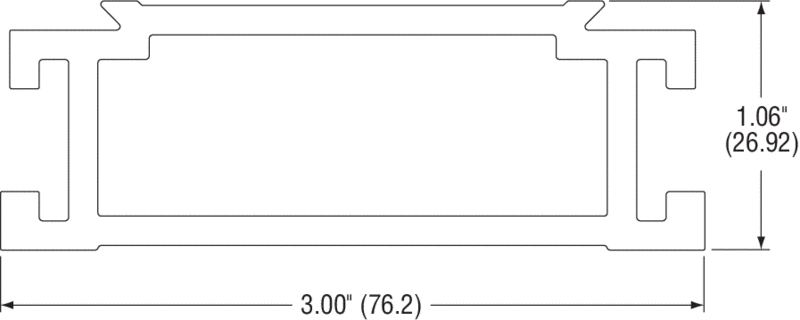

This unique New Focus 3.0 in. (76.2 mm) wide optical rail system uses an enhanced box-beam cross section to reduce weight to 10 oz./ft. (1.8 kg/m) without sacrificing stiffness. Rails are available with either 12.0 in (305 mm) or 24.0 in (610 mm) length.

English and Metric Linear Scales

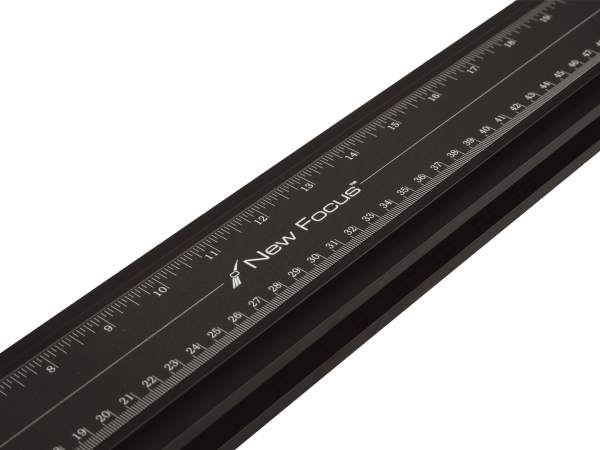

Both Metric and English rulings are printed clearly on each optical rail. This helps to speed-up optical system set-ups.

Single-handed Quick-release Carriers

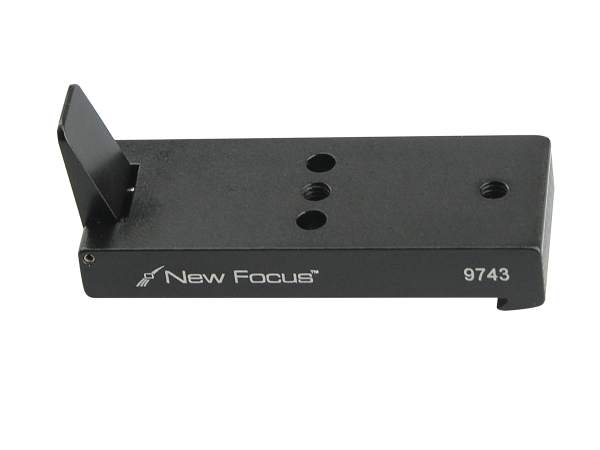

Carriers are available in three style, each of which have a spring-loaded lever for one-handed lock and release. An 8-32 (M4) screw locks the carriers in place once aligned. Models 9741 and 9743-M are each 1 in. (25.4 mm) long with one threaded and once counterbored hole, 1/4-20 and M4 sized, respectively. Model 9742-M has an array of M4 and M6 threaded and counter bored holes and is 3.0 in (76.2 mm) long.
